Problems With the Pond


Small pond liner is defective


Liner bubble caused by poor soil prep



A bubble showed up within a couple of months of installation and has steadily grown. It is now above the surface of the water. Liner bubbles like this are usually caused by decomposing organic matter that gives off carbon dioxide or methane gas. Since the gas has nowhere to go, it creates an air bubble. Proper preparation of the liner bed would have averted the problem.

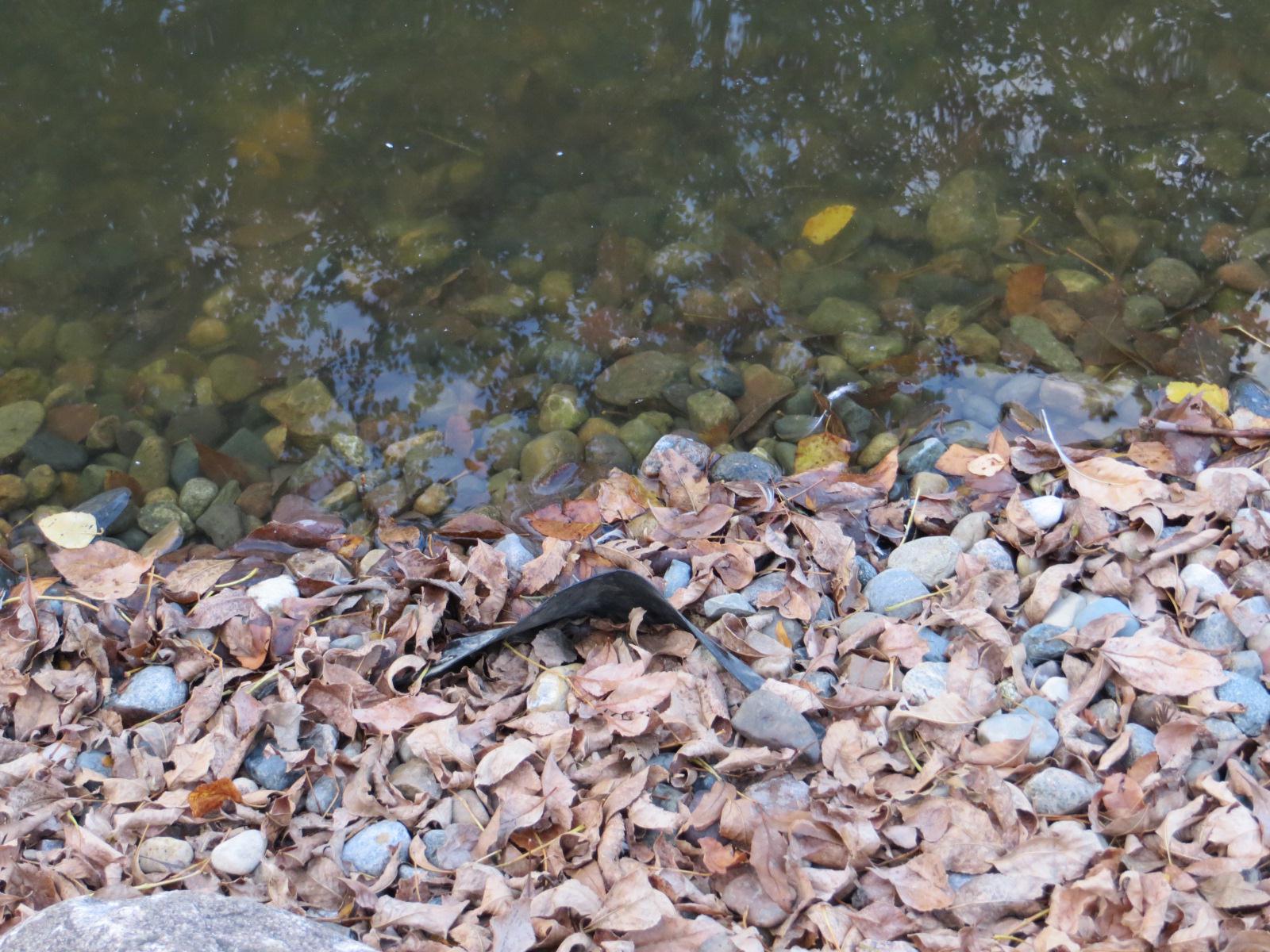

Rocks working theur way under the liner

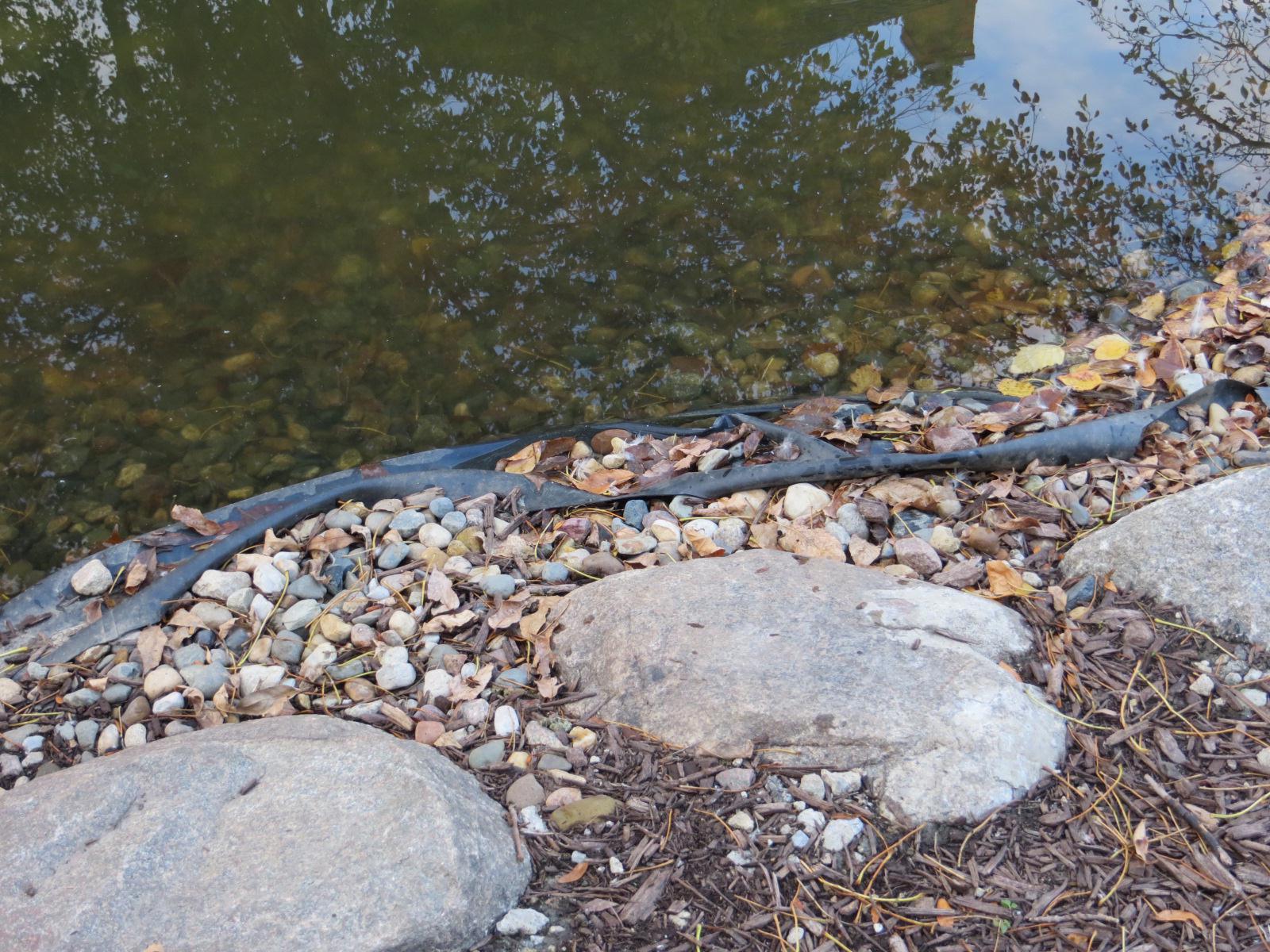

Rocks are failing to conceal the liner

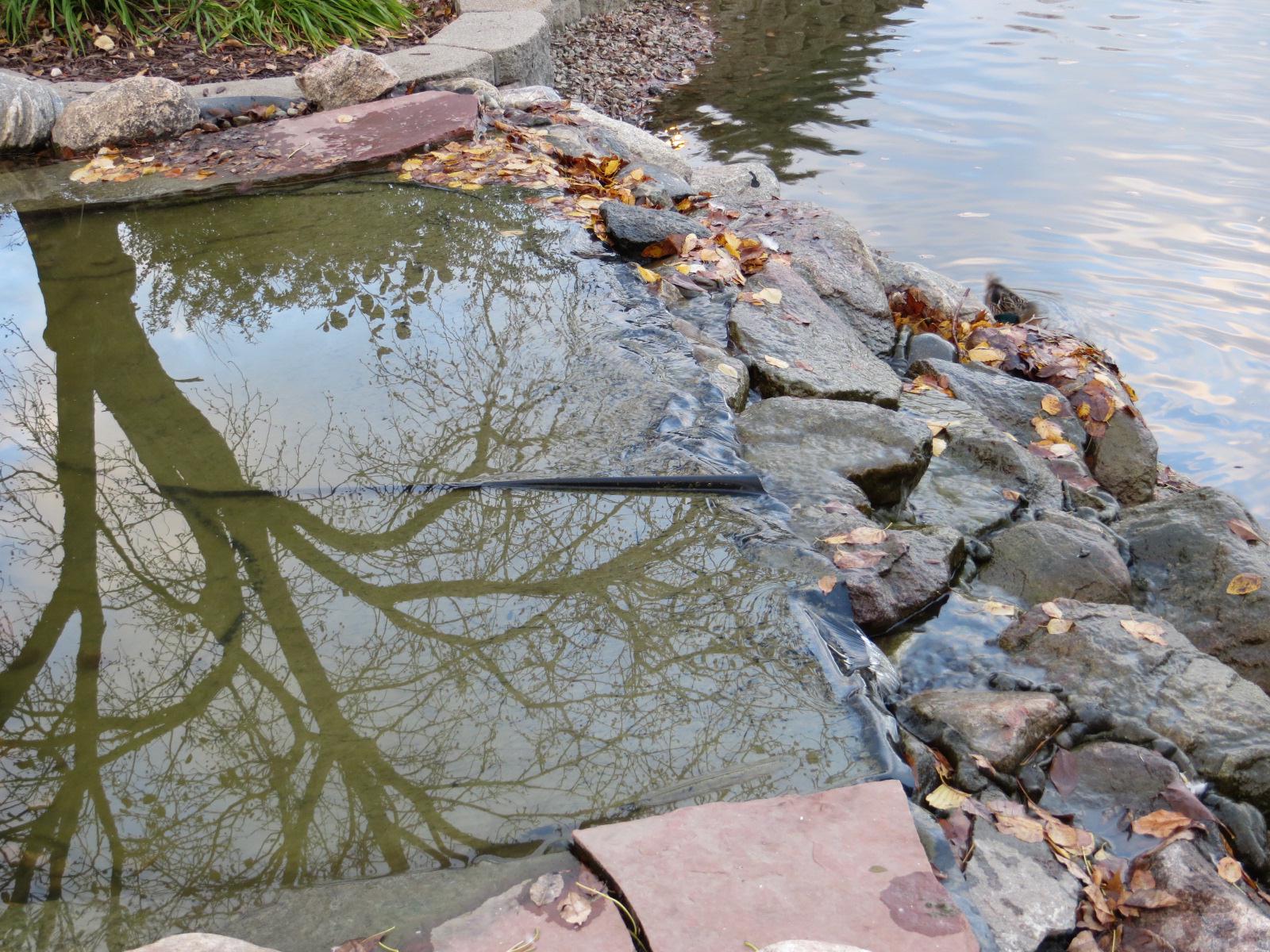

Wrinkled liner

Gravity and foot traffic are pulling the rocks down, into the pond and exposing the liner. In places, the rocks are actually working themselves underneath the liner.  A properly installed pond liner is not retained in place by the weight of river rocks and normally is anchored at the top of the bank rather than at the bottom of it. This will be a continuous problem.

Large pond retaining wall support is eroding away

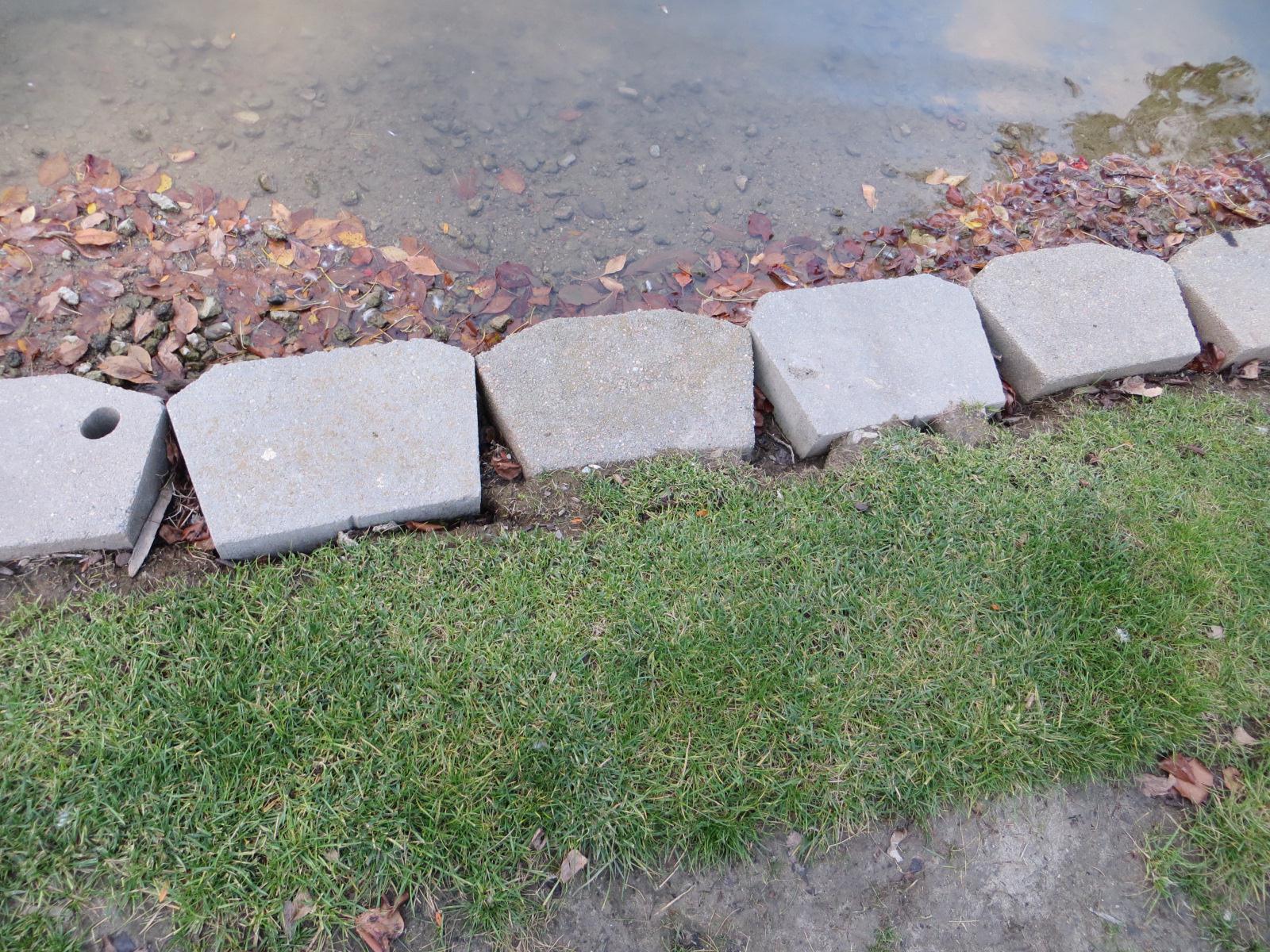

Errosion behind the wall

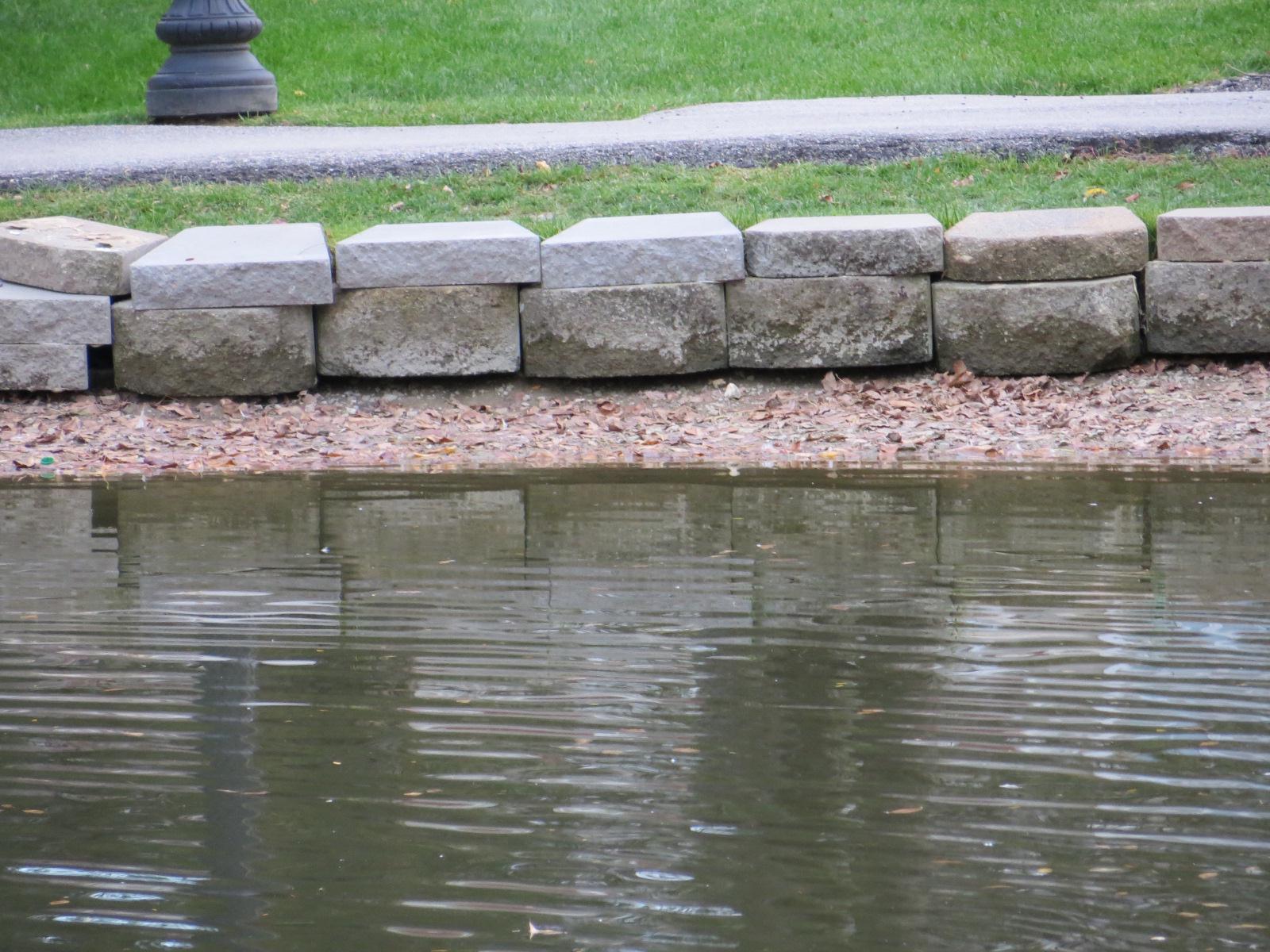

Errosion underneath the wall


Now that the water has receded, the damage to the south wall from over filling the pond is readily apparent. Water has eroded the bank behind the blocks and eroded the earth from underneath it. You can see the degree of settlement in the second blocks from each side of the second photo. The retaining wall was never built with the intent that it function as a sea wall. It is now only a matter of time until the wall sinks to the point where it has to be replaced.
